ISCA-5503834

Iscar 5503834 ISOTURN 2-Sided Turning Insert ANSI Code: CNMG 432-PP IC3028 CNMG Insert 432 Insert Rhombic Shape 12 Seat Positive Rake Carbide Manufacturer's Grade: IC3028

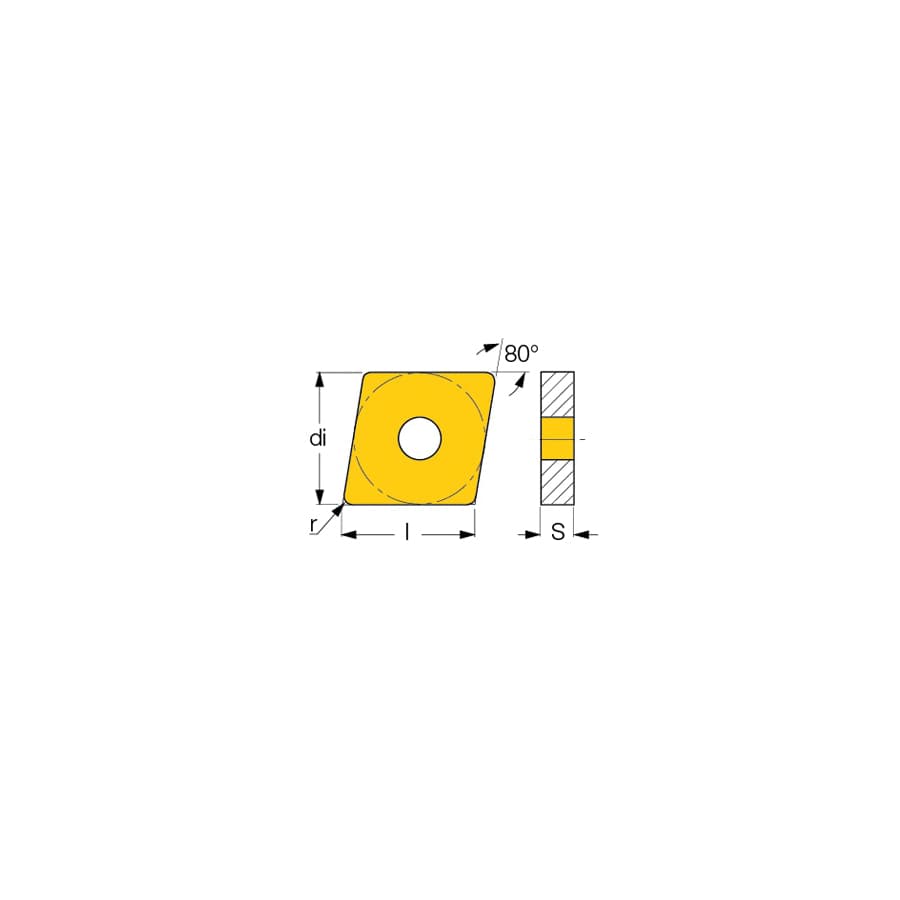

Iscar Turning Insert 2-Sided Series: ISOTURN CNMG Insert 432 Insert Rhombic 4 mm Maximum Depth of Cut 12.7 mm Inscribed Circle 4.76 mm Thickness 12 Seat Positive Rake PP Chipbreaker 0.8 mm Corner Radius 5.1562 mm Hole Dia Manufacturer's Grade: IC3028 ANSI Code: CNMG 432-PP IC3028 ISO Code: CNMG 120408-PP IC3028 80 deg Included Angle 0 deg Relief Angle Carbide PVD Coated

Call for inventory•8 days shipping

Details

  • Double-sided 80 deg rhombic inserts with a positive rake angle and sharp positive radial edge Used for machining very ductile materials such as aluminum alloys soft low carbon steel stainless steel and high temperature alloys Chipbreaker on both sides with hole

Attributes

  • Corner Radius: 0.8 mm
  • Finish: PVD Coated
  • Insert Size: 432
  • Insert Style: CNMG
  • ISO Code: CNMG 120408-PP IC3028
  • Manufacturer's Grade: IC3028
  • Material: Carbide
  • Product Series: ISOTURN
  • Shape: Rhombic
