Iscar 5504874 ISOTURN 1-Sided Turning Insert ANSI Code: DCMT 3-1-SM IC907 DCMT Insert Material Grade: H K M N P S 3-1 Insert Rhombic Shape 11 Seat Positive Rake Carbide Manufacturer's Grade: IC907

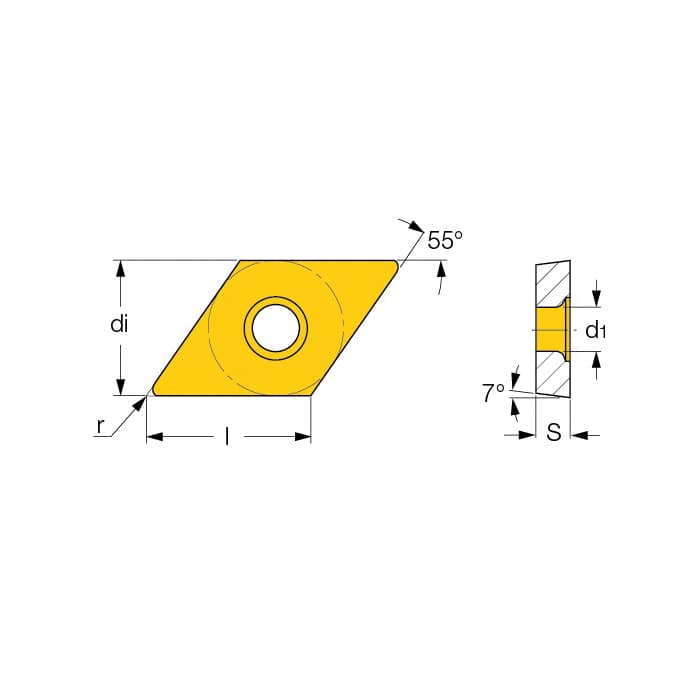

Iscar Turning Insert 1-Sided Series: ISOTURN DCMT Insert 3-1 Insert Rhombic 2.5 mm Maximum Depth of Cut 9.52 mm Inscribed Circle 3.97 mm Thickness 11 Seat Positive Rake SM Chipbreaker 0.4 mm Corner Radius 4.4 mm Hole Dia Manufacturer's Grade: IC907 ANSI Code: DCMT 3-1-SM IC907 ISO Code: DCMT 11T304-SM IC907 55 deg Included Angle 7 deg Relief Angle Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
