ISCA-5506993

Iscar 5506993 ISOTURN 1-Sided Turning Insert ANSI Code: TCMT 3-2-SM IC9250 TCMT Insert Material Grade: M P 3-2 Insert Triangular Shape 16 Seat Positive Rake For Use On Stainless Steel and Steel Carbide Manufacturer's Grade: IC9250

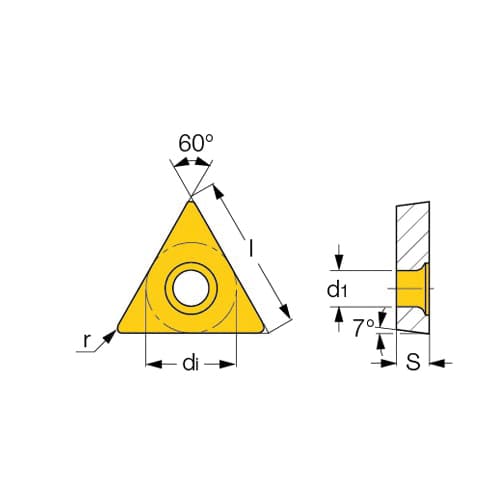

Iscar Turning Insert 1-Sided Series: ISOTURN TCMT Insert 3-2 Insert Triangular 3 mm Maximum Depth of Cut 9.52 mm Inscribed Circle 3.97 mm Thickness 16 Seat Positive Rake SM Chipbreaker 0.8 mm Corner Radius 4.4 mm Hole Dia Manufacturer's Grade: IC9250 ANSI Code: TCMT 3-2-SM IC9250 ISO Code: TCMT 16T308-SM IC9250 60 deg Included Angle 7 deg Relief Angle Carbide CVD-TiCN+alpha Al2O3+TiN Coated Material Grade: M P For Use On: Stainless Steel and Steel

Call for inventory•8 days shipping

Details

  • Positive flank Chip breaking in moderate feed range Positive rake low cutting forces IC9250 grade a tough substrate with a cobalt enriched layer combined with MTCVD TiCN and a thick alpha Al2O3 CVD coating Recommended for general use machining of steel in a wide range of conditions featuring high toughness and wear resistance

Attributes

  • Corner Radius: 0.8 mm
  • Finish: CVD-TiCN+alpha Al2O3+TiN Coated
  • Insert Size: 3-2
  • Insert Style: TCMT
  • ISO Code: TCMT 16T308-SM IC9250
  • Manufacturer's Grade: IC9250
  • Material: Carbide
  • Material Grade: M P
  • Product Series: ISOTURN
  • Shape: Triangular
