ISCA-5509226

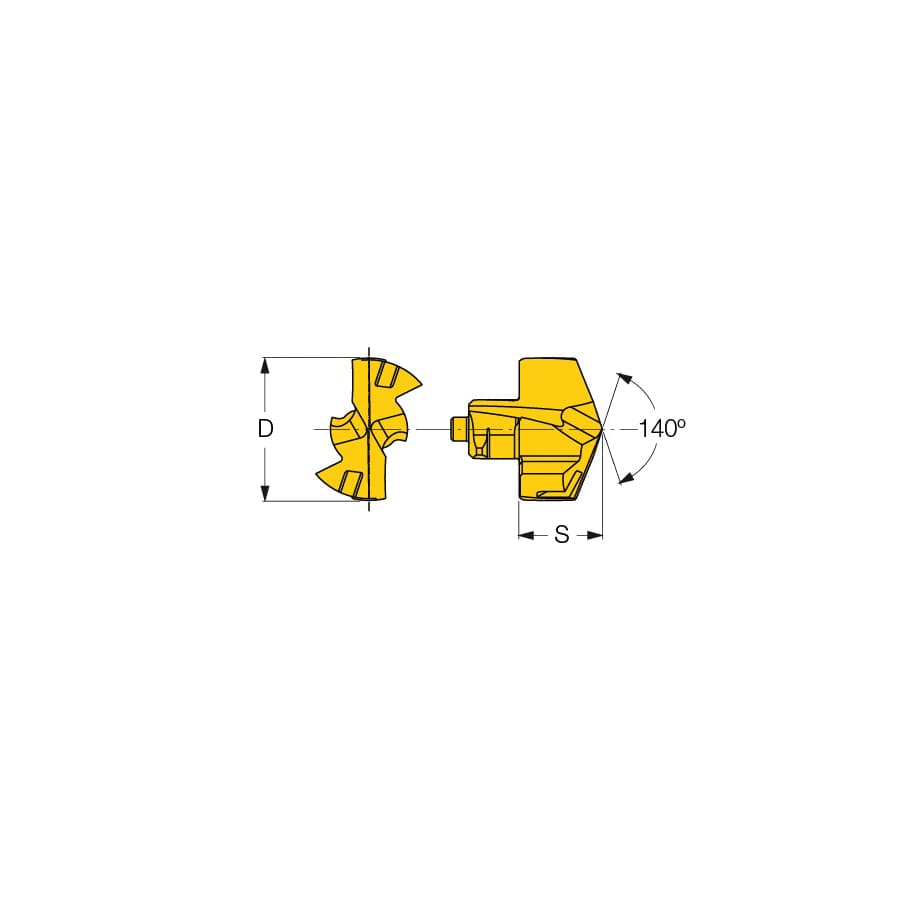

Iscar 5509226 SUMOCHAM Exchangeable Drill Head ANSI Code: ICK 0563 IC908 0.563 in Dia PVD-TiAlN Coated #14 Insert Seat 140 deg Included For Use With DCN R-3D DCN R-1.5D DCN A-5D DCNS-5D Indexable Head Drill and MNCNT-T2 Modular Shank GunDrill
Iscar Drill Head Exchangeable Series: SUMOCHAM ANSI Code: ICK 0563 IC908 0.563 in Dia 0.321 in Insert #14 Insert Seat 140 deg Included Angle For Use With: DCN R-3D DCN R-1.5D DCN A-5D DCNS-5D Indexable Head Drill and MNCNT-T2 Modular Shank GunDrill Manufacturer's Grade: IC908 Through Coolant: No Carbide PVD-TiAlN Coated Applicable Materials: Cast Iron Hard Material High Temperature Alloy Stainless Steel and Steel
Call for inventory•8 days shipping
Details
- The drill head is produced with a ground chamfer and a honed cutting edge A hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Finish: PVD-TiAlN Coated
- Insert Size: 0.321 in
- Manufacturer's Grade: IC908
- Material: Carbide
- Product Series: SUMOCHAM
